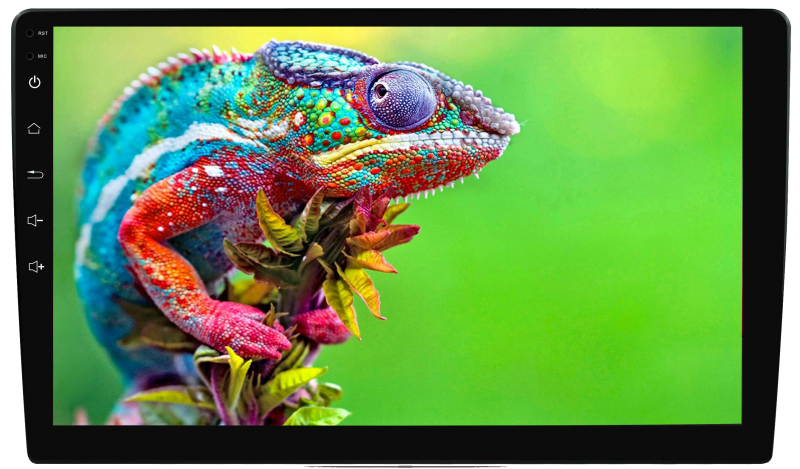

X-60 - 10.1'' Android 6.0 Touchscreen Stereo In-Dash WITHOUT CarPlay

Short Description

• X60 (Android 6.0)
• 10-inch WVGA hovering capacitive touch screen
• Tapered display housing and silver trim for a clean, modernized fit and finish
• Standard 1-DIN chassis designed to fit aftermarket ISO Din dash kits for various vehicle applications
• Audio, video, and Bluetooth® feature set

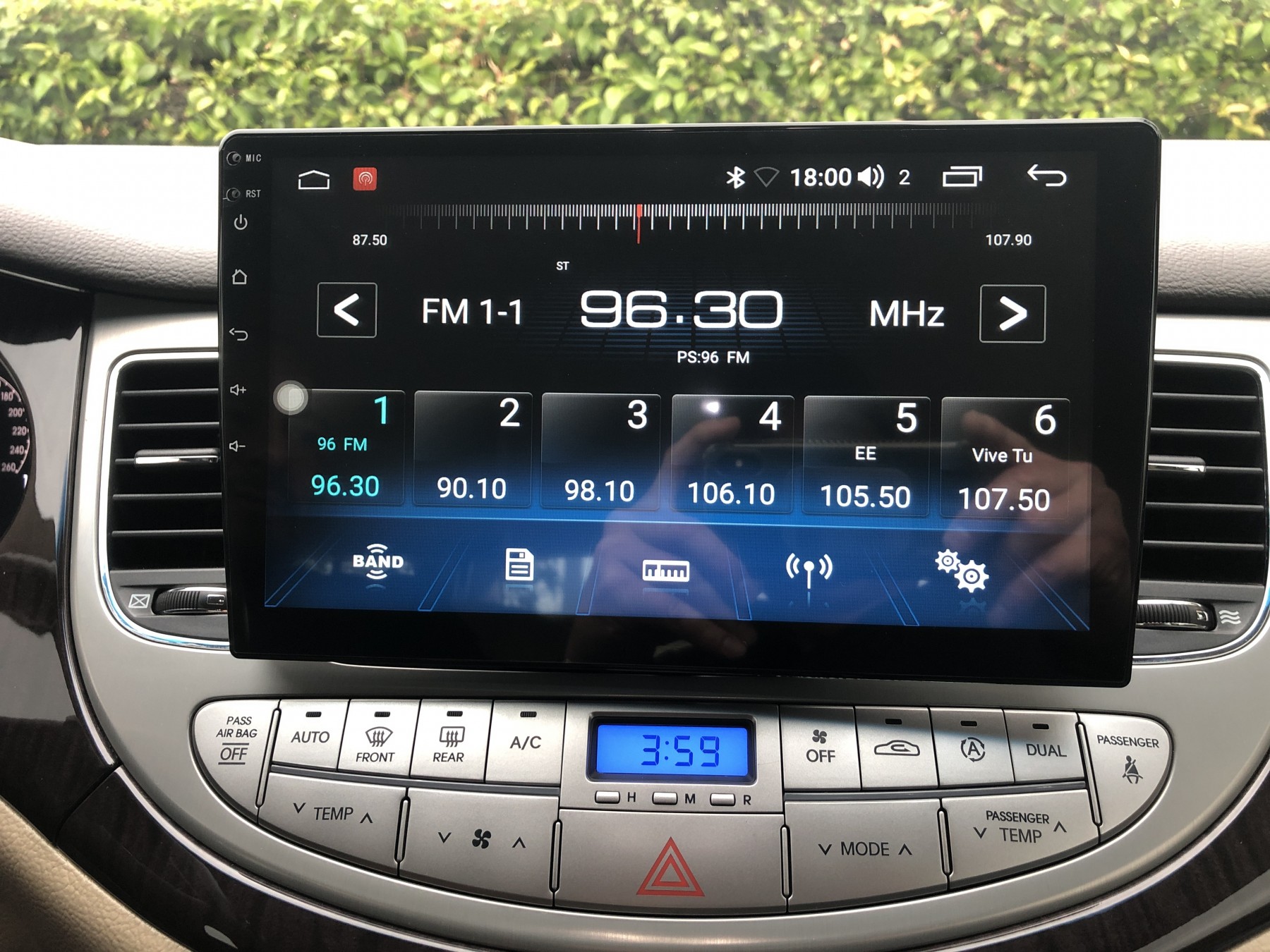

• HD Radio tuner built in
• Mirror Link
• CPU Frequency: Octa Core Intel IA Processor, up to 1.872GH
• GPU: Mali-T820 MP2
• RAM: 2G DDR4
• Internal Storage: 32GB
• Supports 4-64GB SD cards
• Supports 4-64GB USB
• Display Interface: LVDS
• Display Color Depth: 16bit 24bit
• WIFI: 802.11 b/g/n
• Bluetooth: Specification v2.1 + EDR, v4.2 Low Energy, Phone book download (External Bluetooth optional: Realtek8761)
• Network with 4G:
- GSM - GSM850, EGSM900, DCS1800, PCS1900
- WCDMA - BAND1, BAND2, BAND5, BAND8
- TD-SCDMA - BAND34, BAND39
- TDD-LTE - BAND34, BAND38, BAND39, BAND40, BAND41N
- FDD-LTE - BAND1, BAND2, BAND3, BAND5, BAND7, BAND8, BAND20, BAND28A
• Video Display: 1080P @ 60FPS (H.264 H.265), Maximum support 4K resolution
• USB Interface: 1 USB 2.0 motherboard expandable
• SD Interface: 1 SD 3.0
• Serial port: 1 support baud rate 115200
• Mic Input: 1 channel analog input
• Video Input: Support 4 way CVBS / Analog HD
• Video Output: Not supported (main board added 7026)
• Audio Input: Motherboard direct processing, four audio input, with DSP
• Audio Output: 1 channel analog output, I2S output
• DVR: Support USB drive recorder function
• Operating temperature: -40 C to 85 C
• Operating Voltage: 9-16V
• Sleep current: Fast wake up current after breaking ACC

• Deep standby current: After breaking the ACC, a period of time after the current
